Adding storage with your PV system can be simple. Whether you have an existing grid-tie system or are planning a new project, Sol-Ark and Fortress offer a combined solution that will help you keep the lights on and your home office running during utility interruptions. “Closed-loop” communication and streamlined installation makes integrating solar with storage now easier than ever.

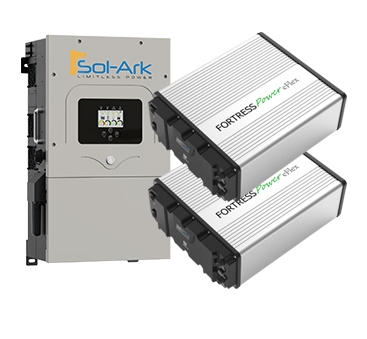

| Components Included | |
|---|---|
| Sol-Ark 8kW All-In-One-Hybrid 48V Inverter | Qnty. 1 |
| Fortress Power 5.4kWh eFlex Lithium Iron Phosphate Battery | Qnty. 2 |
| Fortress Power Battery Wall Mount Enclosure | Qnty. 2 |
| FW500 DC Enclosure | Qnty. 1 |
| Sets of 2/0 Battery to Inverter Red and Black Cables | Qnty. 2 |
Sol-Ark 8K > 8,000 Watt 48 Volt All-In-One Solar Generator – Inverter
Manufacturer Part Number: 8K
Grid Tied Mode, Meter Zero, Time of Use, Smart Load, Peak Shaving, 7kW AC Coupling
| Specifications | |
|---|---|
| Max allowed PV Power | 11,000W |
| Max allowed PV Power per MPPT | 6,000 Watts |
| Max DC voltage | 500V |
| MPPT voltage range | 150-425V |
| MPPT Starting Voltage | 175V |
| Number of MPPT | 2 |
| Nominal AC Output Voltage | 120/240V split phase |
| Peak Inverter Efficiency | 97.5% |
| Continuous AC power to Grid (On Grid) | 9000W 37.5A L-L (255 V)
4800W 40A L-N (120V) |
| Continuous AC power to Loads (Off-Grid) | 20,000VA L-L (240V)
10,000VA L-N (120V) |
| Battery Type | Lead-Acid or Li-Ion |
| Nominal DC Input | 48V |
| Capacity | 90 – 2000Ah |
| Grid to Battery Charging Efficiency | 96.0% |
| Dimensions (H x W x D) | 30.0” x 18.30” x 10.00” |
| Weight | 78 lbs |
Helpful Hint with Sol-Ark hybrid inverters: Unlike most string inverters – Sol-Ark hrybid inverter solution will not have a complete power loss for a series string of modules if one of the panels goes bad (stops producing) *** so as long the total voltage of the remaining panel meets or exceeds the min mppt voltage range of 150VDC.
The eFlex 5.4 kWh 48 Volt Lithium Iron Battery by Fortress Power is a safe, scalable solution for any projects energy storage needs.
With built-in data storage and Wi-Fi for remote troubleshooting and monitoring. The eFlex is light years ahead of the pack. Additional features, such as the smart Battery Management System (BMS) includes relay disconnects, closed loop communication for many hybrid inverters, cell voltage and temperature monitoring, and cell balancing to maximize reliability and longevity, as well as wifi for internet-of-things compatibility.
The Fortress Power eFlex has the highest round-trip efficiency in the industry at 98% efficiency.
Also, this battery has several mounting options such as wall mount, floor mount and server rack mount to fit your individual project’s needs.
| Product Information | |
|---|---|
| Model | eFlex 5.4 |
| Series | eFlex |
| Manufacturer | Fortress Power |
| Mechanical | |
|---|---|
| Type | Lithium Iron Phosphate (LiFePO4) |
| Dimensions (L x W x H) | 21.5″ x 17.5″ x 7.2″ |
| Weight | 108 lbs |
| Shipping Method | Freight |
| Nominal Voltage | 48V |
| Rated Capacity (20 Hour Rate) | 105 AH |
| Terminal Type | M8 |
Lithium Iron Phosphate Battery
The Fortress Power eFlex is a 5.4 kWh scalable energy storage solution based on safe and energy dense prismatic Lithium-Iron-Phosphate cells. The high amperage, smart Battery Management System (BMS) includes relay disconnects, closed-loop inverter communication, cell voltage and temperature monitoring, and cell balancing to maximize reliability and longevity, as well as wifi for internet-of-things compatibility. The unit can be wall mounted, floor mounted, and server rack mounted.
Features
