S-5! VersaGard™ L-Foot

SKU SE-S5-MR-16 Category
Brand:S-5

Description

For face-fastened roof system or for snow retention to support one- or two-pipe system, with Butyl, hardware not included, VersaGard.

VersaBracket™ can be used to mount virtually anything to a face-fastened roof system and is compatible with almost any trapezoidal, face-fastened profile. No messy sealants to apply. No chance for leaks. The VersaBracket™ comes with factory-applied sealant already in the base for a water-tight attachment.

VersaBracket™ is so strong, it will even support heavy-duty applications like snow retention. For exposed-fastened, trapezoidal profiles, the VersaBracket™ is the perfect match for our ColorGard® snow retention systems (For corrugated roofs use CorruBracket™). VersaBracket™ is extremely economical and facilitates quick and easy installation.

To accommodate various rib heights, VersaBracket™ comes in two heights—the 2.65″ VB-67 and the 1.86″ VB-47. The VB-67 mounting face has no holes or slots, thus, ancillary items are typically secured using self-tapping screws (not included). The VB-47 offers various mounting face configurations with minimum purchase requirements. Each VersaBracket™ comes with factory-applied butyl sealant in the base. A structural aluminum attachment bracket, VersaBracket™ is compatible with most common metal roofing materials.

Installation is simple. VersaBracket™ is mounted in the flat of the panel, directly into the supporting structure of the roof, i.e., wood decking, wood or steel purlins or trusses. No surface preparation is necessary; simply wipe away excess oil and debris, peel the release paper from the base, align and apply. Secure through the pre-punched holes using the appropriate screws for the supporting structure.

Additional information

Weight 0.15 lbs

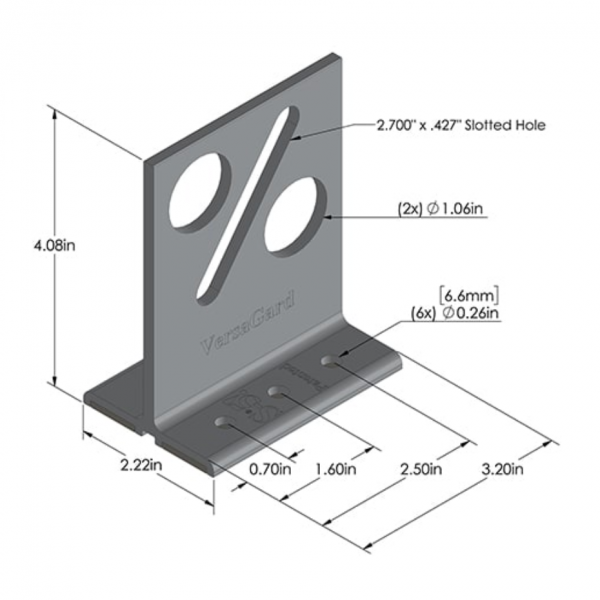

Dimensions 3.2 × 2.5 × 4.08 in

Brand

S-5
