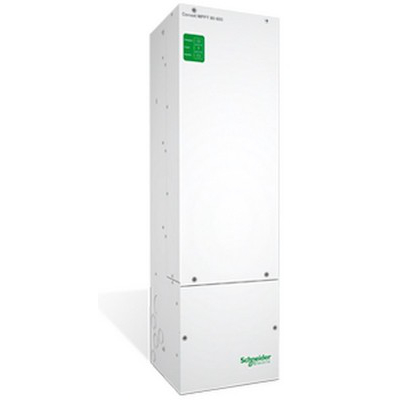

Schneider Electric MTTP™ Charge Controller, 80A, 600VDC, 48VDC, White

  • 600 VDC maximum input
  • Full power range: 230 to 550 VDC
  • Operating range: 195 to 550 VDC
  • MMPT range: 195 to 510 VDC
  • PV array start voltage: 230 VDC
  • 80 A output
  • Full output power at 450 C without derating
  • Charges 24 V or 48 V battery banks
  • Fast Sweep MPPT algorithm
  • High efficiency: 96% nom @ 48 V and 94% nom @ 24 V
  • Input over- and under-voltage protection, output over-current and backfeed protection
  • Over-temperature protection and power derating when ambient temperatures are high
SKU SE-SE-CC-1 Categories ,

Description

The Conext XW™ Series is one solution for a wide range of applications including grid-tie, off-grid and backup power. It is comprised of manageable building blocks for single- or three-phase systems ranging from 4 kW to 36 kW. Within the system, the MPPT 80 600 solar charge controller regulates the proper charging voltage of the system’s batteries. Requires a SCP to program 865-1050-01,#341-0109.

The MPPT 80 600 offers an industry-first set of features to lower installation costs — fewer PV strings, longer home runs, smaller wiring and conduit, and virtual elimination of PV combiner boxes and circuit breakers (CBs). It accepts array voltages up to 600 V making it the most flexible solar charge controller on the market.

COST EFFICIENT

  • Fewer parts and simpler system reduces design and installation costs
  • Combiner box and CB’s eliminated
  • Uses smaller AWG wire
  • Built in GFP and indicator
  • Battery temperature sensor included

FLEXIBLE

  • Configurable for positive, negative and ungrounded PV systems
  • Long PV strings allow for optimal module configuration and performance
  • PDP Mounting Compatible
  • Used with both the Conext XW and Conext SW inverter/charger systems 5 year standard warranty

Additional information

Weight 32 lbs
Dimensions 8.75 × 8.75 × 30 in

Brand

Schneider Electric
