S-5! EdgeGrab Kit Attachment Solution For End Panels On Standing Seam Metal Roof

The EdgeGrab accommodates PV frame thicknesses of 30–48 mm (if the L-flange is positioned below the stud’s hex nut) and 34–51 mm (if the L-flange is positioned above the stud’s hex nut).

SKU EdgeGrab Category
Brand:S-5

Description

Characteristics
Manufacturer S-5!
Model EdgeGrab
Length [mm (in)] 1.89 inch
Width [mm (in)] 3 inch
Depth [mm (in)] 3 inch
Weight [kg (lb)] 3.4 oz

Brand

S-5

FEATURES

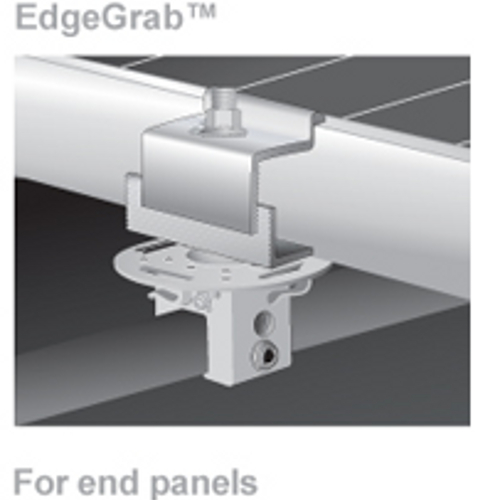

S-5! EdgeGrab Kit Attachment Solution For End Panels on Standing Seam Metal Roof

Note:

Not UL or ETL listed.

S-5! Clamp not included.

S-5!’s new EdgeGrab™ is specifically designed to be used in conjunction with our patented S-5-PV Kit for solar array end conditions.


The EdgeGrab accommodates PV frame thicknesses of 30–48 mm (if the L-flange is positioned below the stud’s hex nut) and 34–51 mm (if the L-flange is positioned above the stud’s hex nut).


EdgeGrab uses the same S-5-PV Kit base assembly as the universal PV grab and will work on most exposed-fastened and corrugated metal roofs.
