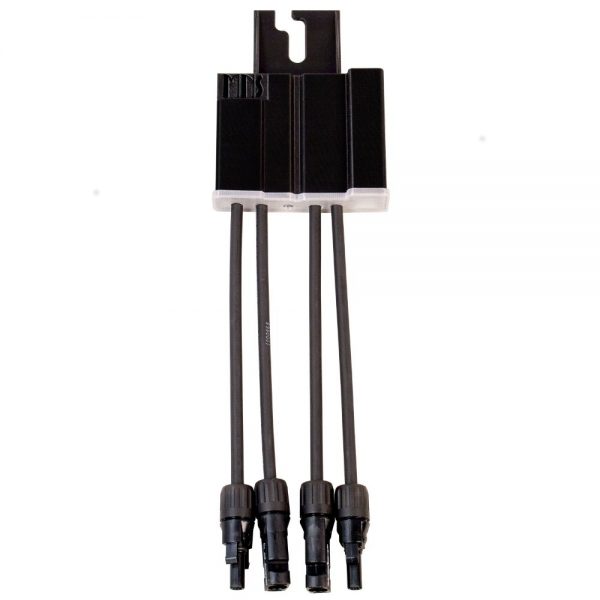

MidNite Solar Shut Off Box Reciver 600V 12A

Product description

The MidNite SOB (Shut Off Box) is a simple to install, low cost rapid shut down system designed to comply with 2014 as well as 2017 NEC.
The system uses a receiver at the module that wires in just like an optimizer and a transmitter that is installed in or near the Inverter. The installer does not need to install any other wiring between the transmitter and receiver. The system is fail safe, if the receiver does not sense the keep alive data stream from the transmitter, it turns off and opens the circuit.
The MNLSOB system was designed to work with grid-tied Inverters. At this time, it does not work with charge controllers.

SKU MNLSOB-R1-600 Categories ,

Out of stock

Description

  • Receiver is fail safe, if PLC signal goes away the SOB turns off the string
  • A receiver is placed at the end of each string. Up to six strings
  • Module level shut down can be achieved by installing one receiver per panel
  • 600 & 1000 string voltage
  • 80V maximum panel voltage
  • 12A maximum string current
  • Operating temperature range: 600V – 40ºC to +80ºC

Brand

Midnite Solar

Midnite Solar is a US-based manufacturer of advanced solar charge controllers, inverters, and other power electronics, designed to optimize and manage solar energy systems. The company is based in Arlington, Washington, and has been providing high-quality solar products for more than 20 years. Midnite Solar's product line includes a range of charge controllers and inverters that are designed to work seamlessly with solar panels, batteries, and other components, providing customers with a reliable and efficient source of solar power. With a focus on innovation and sustainability, Midnite Solar's products are built to withstand harsh environments and deliver exceptional performance, making them a top choice for residential, commercial, and industrial solar applications.

Downloads

sob_frontBack
sob_dim_drawings
little_SOB_manual
