Magnum Energy ME-ARTR Advanced Router For Inverter Stacking, LCD Display

Product description

The ME-ARTR (or “advanced router”) has many of the same features as the ME-ARC, with the added functionality required to parallel Magnum MS-PAE or MS-PE inverter/chargers. The advanced router is designed to easily and quickly connect multiple inverter/chargers in parallel without the need to program each inverter. The ME-ARTR can accommodate up to: four MS-PAE or MS-PE inverter/chargers in parallel, two AGS modules, six BMKs, and one remote control.

Out of stock

Description

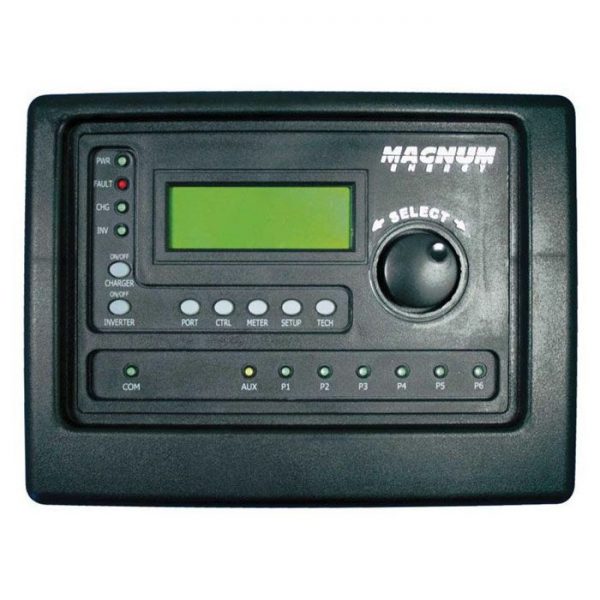

  • Status LEDs (x4) – At-a-glance LEDs that provide the inverter/charger’s status in a straightforward way.
  • LCD Display – A 20 x 4 line (80 characters total) alphanumeric display used for setting up the inverter/charger operation, as well as viewing current status or fault messages.
  • ON /OFF Buttons (x2) – ON/OFF buttons that allow all the connected inverters or chargers to be quickly enabled or disabled.
  • Rotary SELECT Knob – A rotary encoder knob that is similar to a car dash radio knob and is used to quickly scroll through Ports 1-6, or to select various menu items and settings. Pressing this rotary knob allows you to select a menu item or to save a setting, once it is displayed on the LCD.
  • Comm LEDs (x6) – At-a-glance LEDs that provide the connection statuses of the communication ports.
  • Front Cover – Removable front frame cover, allows access to the cable connections and mounting holes.
  • The standard warranty is 1 year. However, if you order the ME-ARTR with a MP or MMP panel system, and install it on that system, the warranty will be extended to 5 years.

Brand

Magnum Energy

Magnum Energy is a leading manufacturer of advanced power conversion equipment and energy management systems for solar and renewable energy applications. The company's product line includes solar inverters, chargers, and battery monitoring systems that are designed to maximize solar energy production and minimize waste, ensuring that customers get the most out of their solar energy systems. With a focus on innovation and quality, Magnum Energy's solar products are built to withstand harsh environments and deliver exceptional performance in a range of solar applications. Whether for residential or commercial use, Magnum Energy's solar solutions provide a reliable and efficient source of solar power for all off-grid and renewable energy needs.

Downloads

ME-ARTR_manual
ME-ARTR-Router_datasheet
